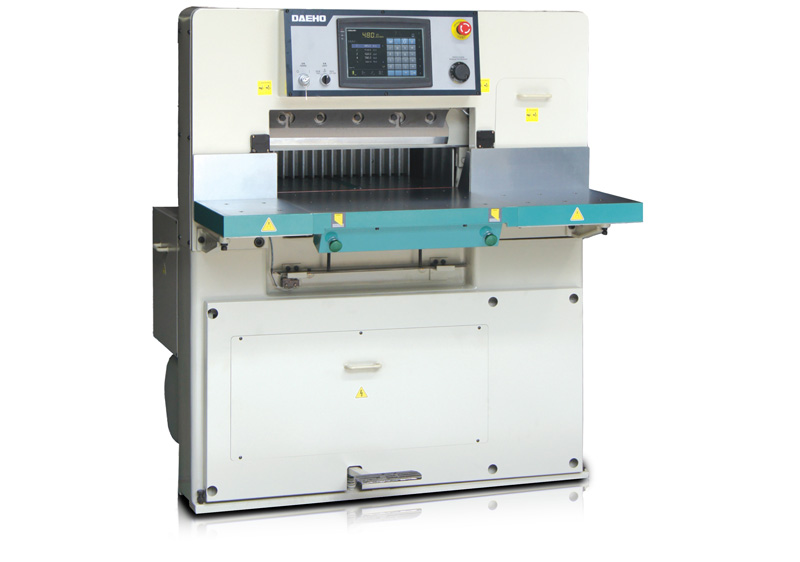

DAEHO f Cutter is different with another small paper cutters. Hydraulic system is used for moving clamp and knife also in Normal small paper cutter. But, we usd hydraulic system for moving clamp only. The knife is moved by electromagnetic clutch as Large format paper cutter.

Do you want Small paper cutter with Strong power? Your choice is f Cutter only.

Features

  • 5 inch LCD color touch Monitor
  • Manual / Semi-auto mode
  • Hydraulic clamp and electromagnetic clutch knife
  • Restoration Factory setting parameter
  • Simple Backgauge jog touch panel
  • Auto notification of knife life, lubricant oil
  • Memory capability : 100 process, 100 step
  • The backgauge is driven by AC Servomotor.

Specification

Model f-570
A Cutting width  570
B Cutting opening  120
C Cutting depth  Max. 570
Min. 15
D Front table length  450
E Table height  865
F Machine length  1300
G Machine width  1180
H Machine height  1390
Cutting speed r.p.m 20
Power  Main motor 1.5
Backgauge 0.2
Air table 0.2
Backgauge speed ㎝/sec Max. 10
Min. 1
Driving system Single
Clank
Clamp pressure  Max. 500
Min. 1500
Machine weight  860

⊕ Subject to change and improvement without notice.

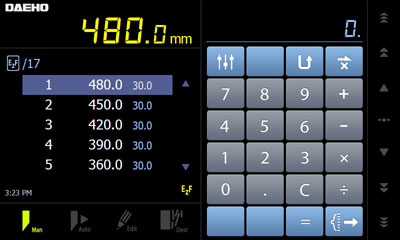

Touch screen

For more information about i Cutter, please do not hesitate to contact us.
