DAEHO DTU automatic unloader transfers sheets onto pallet.

Full unloading operation is done by just one push button and operator can do cutting operation while unloading is going on. DAEHO’s unloader gives better productivity and precise alignment for cutting job with cutter.

    • Max. Unloading width is 1370mm
    • Unloading different size paper on the large paper
  • Unloading 2 blocks paper at once

Features

  • Unloading cut material which cutting has been completed fast and safely.
  • Control speed of 2 gears table and feeding table.
  • While unloading products, user can do other work.

Specification

Model DTU-1000 DTU-1360
A Machine width  2500 3700
B Machine length  1650 1900
C Machine height  1800 2100
D Table width  1200 1450
E Table length  800 1000
Stack height  1300 1600
Min. unloading width  400 400
Max. unloading height  165 165
Max. unloading weight  200 300
Power  2.4 2.4
Machine weight  900 1200

⊕ Subject to change and improvement without notice.

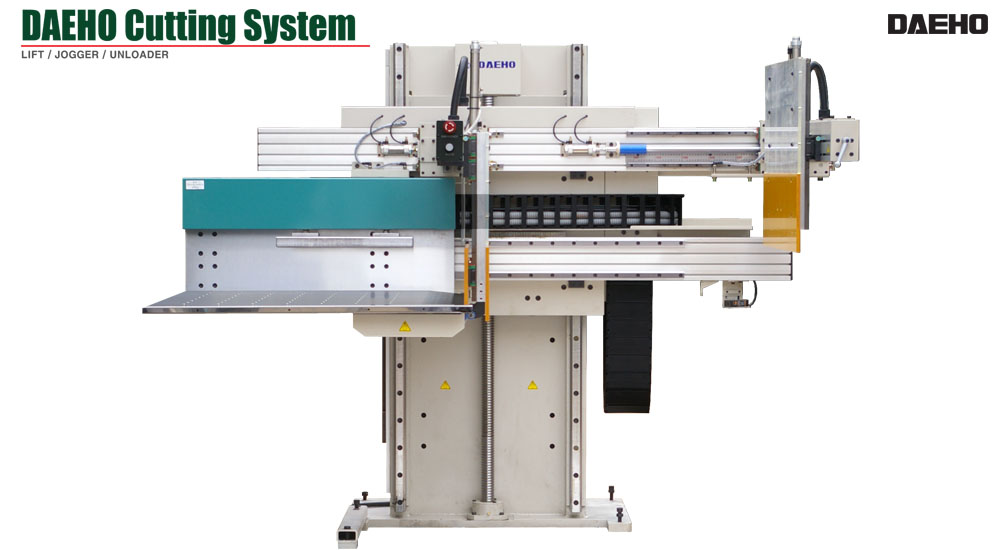

DTU-1000

  • Max. unloading width : 1000mm

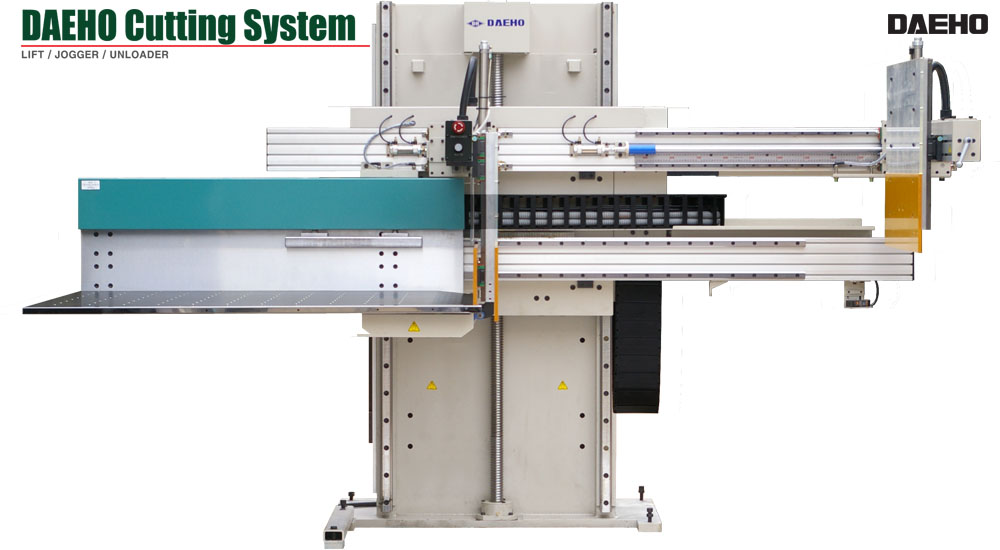

DTU-1400

  • Max. unloading width : 1400mm

For more information about DAEHO paper unloader, please do not hesitate to contact us.
