Paper stack Lift 2019

DAEHO paper stack lift works separately from cutter. It can be used in general lift work, too. One of heavy work at cutting process is that operator move up the paper to the table of paper cutter. If you use DAEHO Stack lift, You can do this work more easily.

Features

Automatic height control (loading/unloading are available)
Protect operator and safe descending function
Safety design conforming European standard
Selectable between pallet type or fork type ( DLS, DLF type)
Available to use as semi-unloader

Specification

Model	DLS-1050	DLS-1300
A Machine width ㎜	1190	1440
B Machine length ㎜	1120	1370
C Machine height ㎜	1506	1506
D Pallet width ㎜	1050	1300
E Pallet length ㎜	700	950
F Stroke ㎜	900	900
Min. loading width ㎜	500	500
Max. loading weight ㎏	1000	1000
Power ㎾	0.8	0.8
Machine weight ㎏	620	750

⊕ Subject to change and improvement without notice.

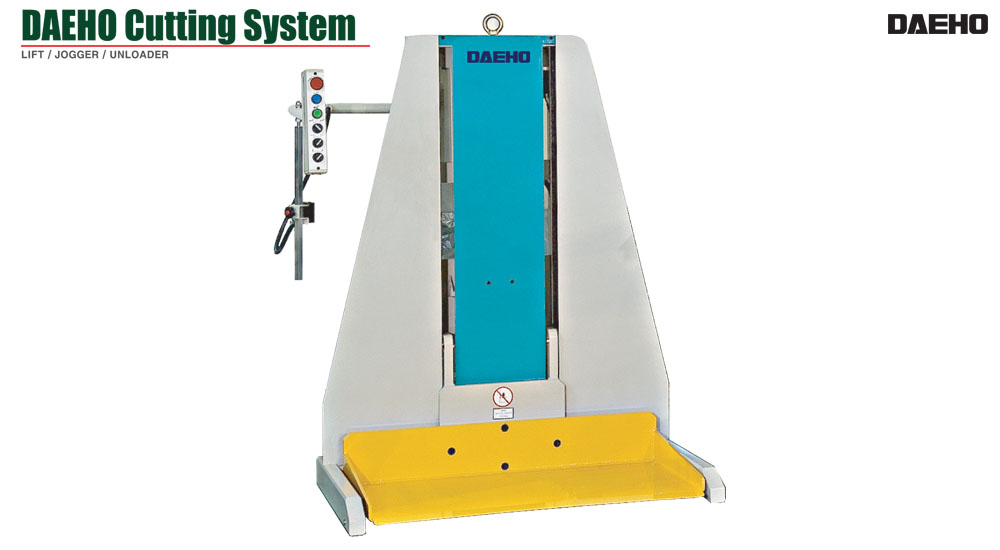

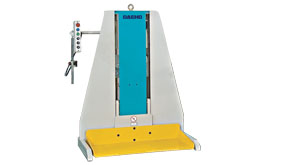

DLS-1050

Maximum loading width : 1050mm

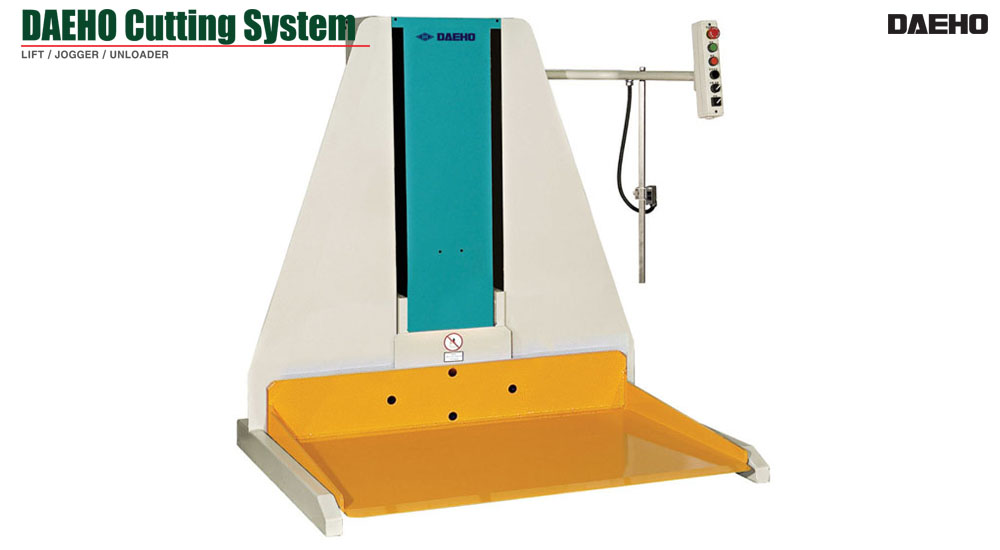

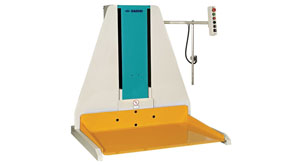

DLS-1300

Maximum loading width : 1300mm

For more information about DAEHO Stack Lift, please do not hesitate to contact us.
